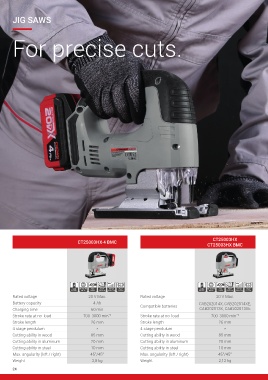

Page 24 - CrownB3plus

JIG SAwS

For precise cuts.

CT25003HX
CT25003HX-4 BMC
CT25003HX BMC

Rated voltage 20 V Max. Rated voltage 20 V Max.
Battery capacity 4 Ah Compatible batteries CAB202014X, CAB202014XE,
Charging time 60 min CAB202013X, CAB202013XE
Stroke rate at no-load 700-3000 min¯¹ Stroke rate at no-load 700-3000 min¯¹
Stroke length 26 mm Stroke length 26 mm
4 stage pendulum * 4 stage pendulum *
Cutting ability in wood 85 mm Cutting ability in wood 85 mm
Cutting ability in aluminum 20 mm Cutting ability in aluminum 20 mm
Cutting ability in steel 10 mm Cutting ability in steel 10 mm
Max. angularity (left / right) 45°/45° Max. angularity (left / right) 45°/45°
Weight 2,8 kg Weight 2,12 kg

24

CROWN_A4_DC_leaflet_2020_11.02.20.indd 24 11.02.2020 12:23:30
