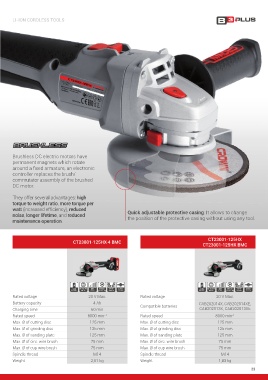

Page 23 - CrownB3plus

LI-ION CORDLESS TOOLS

Brushless DC electric motors have
permanent magnets which rotate
around a fi xed armature, an electronic
controller replaces the brush/
commutator assembly of the brushed
DC motor.

They offer several advantages: high
torque to weight ratio, more torque per
watt (increased effi ciency), reduced
noise, longer lifetime, and reduced Quick adjustable protective casing: It allows to change
maintenance operation. the position of the protective casing without using any tool.

CT23001-125HX
CT23001-125HX-4 BMC
CT23001-125HX BMC

SOFT SOFT
START START
Rated voltage 20 V Max. Rated voltage 20 V Max.
Battery capacity 4 Ah Compatible batteries CAB202014X, CAB202014XE,
Charging time 60 min CAB202013X, CAB202013XE
Rated speed 8000 min -1 Rated speed 8000 min -1
Max. Ø of cutting disc 125 mm Max. Ø of cutting disc 125 mm
Max. Ø of grinding disc 125 mm Max. Ø of grinding disc 125 mm
Max. Ø of sanding plate 125 mm Max. Ø of sanding plate 125 mm
Max. Ø of circ. wire brush 75 mm Max. Ø of circ. wire brush 75 mm
Max. Ø of cup wire brush 75 mm Max. Ø of cup wire brush 75 mm
Spindle thread M14 Spindle thread M14
Weight 2,51 kg Weight 1,83 kg

23
