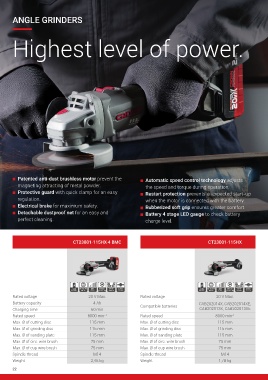

Page 22 - CrownB3plus

ANGLE GRINDERS

Highest level of power.

Patented anti-dust brushless motor prevent the Automatic speed control technology adjusts
magneting attracting of metal powder. the speed and torque during operation.
Protective guard with quick clamp for an easy Restart protection prevents unexpected start-up
regulation. when the motor is connected with the battery.
Electrical brake for maximum safety. Rubberized soft grip ensures greater comfort.
Detachable dustproof net for an easy and Battery 4 stage LED gauge to check battery
perfect cleaning. charge level.

CT23001-115HX-4 BMC CT23001-115HX

SOFT SOFT
START START
Rated voltage 20 V Max. Rated voltage 20 V Max.
Battery capacity 4 Ah Compatible batteries CAB202014X, CAB202014XE,
Charging time 60 min CAB202013X, CAB202013XE
Rated speed 8000 min -1 Rated speed 8000 min -1
Max. Ø of cutting disc 115 mm Max. Ø of cutting disc 115 mm
Max. Ø of grinding disc 115 mm Max. Ø of grinding disc 115 mm
Max. Ø of sanding plate 115 mm Max. Ø of sanding plate 115 mm
Max. Ø of circ. wire brush 75 mm Max. Ø of circ. wire brush 75 mm
Max. Ø of cup wire brush 75 mm Max. Ø of cup wire brush 75 mm
Spindle thread M14 Spindle thread M14
Weight 2,46 kg Weight 1,78 kg
