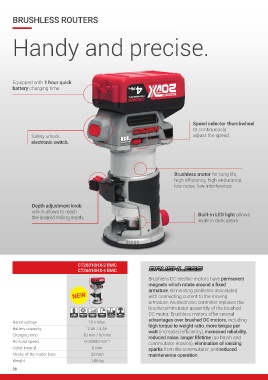

Page 28 - CrownB3plus
P. 28

BRUSHLESS ROUTERS




              Handy and precise.










              Equipped with 1 hour quick
              battery charging time.








                                                                                              Speed selector thumbwheel
                                                                                              to continuously
                      Safety unlock                                                           adjust the speed.
                      electronic switch.







                                                                                     Brushless motor for long life,
                                                                                     high effi ciency, high endurance,
                                                                                     low noise, low interference.



                      Depth adjustment knob
                      which allows to reach                                                     Built-in LED light allows
                      the desired milling depth.
                                                                                                work in dark areas










                                           CT26010HX-2 BMC
                                           CT26010HX-4 BMC
                                                                          Brushless DC electric motors have permanent
                                                                          magnets which rotate around a fi xed
                                                                          armature, eliminating problems associated
                                        NEw                               with connecting current to the moving
                                                                          armature. An electronic controller replaces the
                                                                          brush/commutator assembly of the brushed
                                                                          DC motor. Brushless motors offer several
                                                VARIABLE
                                                SPEED
              Rated voltage                    20 V Max.                  advantages over brushed DC motors, including
              Battery capacity                 2 Ah / 4 Ah                high torque to weight ratio, more torque per
                                                                          watt (increased effi ciency), increased reliability,
              Charging time                  30 min / 60 min              reduced noise, longer lifetime (no brush and
              No-load speed                   0-30000 min¯¹               commutator erosion), elimination of ionizing
              Collet inner Ø                     6 mm                     sparks from the commutator, and reduced
              Stroke of the router base         20 mm                     maintenance operation.
              Weight                            1,86 kg
