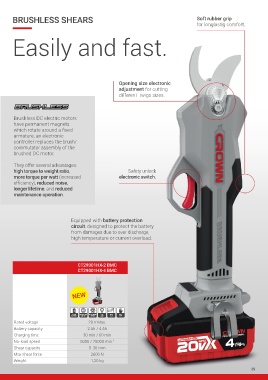

BRUSHLESS SHEARS                                                                 Soft rubber grip
                                                                                               for longlastig comfort.


              Easily and fast.










                                                             Opening size electronic
                                                             adjustment for cutting
                                                             different  twigs sizes.




              Brushless DC electric motors
              have permanent magnets
              which rotate around a fi xed
              armature, an electronic
              controller replaces the brush/
              commutator assembly of the
              brushed DC motor.

              They offer several advantages:
              high torque to weight ratio,                       Safety unlock
              more torque per watt (increased                electronic switch.
              effi ciency), reduced noise,
              longer lifetime, and reduced
              maintenance operation.





                                        Equipped with battery protection
                                        circuit: designed to protect the battery
                                        from damages due to over discharge,
                                        high temperature or current overload.






                                           CT29001HX-2 BMC
                                           CT29001HX-4 BMC





                                        NEw






              Rated voltage                    20 V Max.
              Battery capacity                 2 Ah / 4 Ah
              Charging time                  30 min / 60 min
              No-load speed                 5000 / 25000 min -1
              Shear capacity                    0-30 mm
              Max shear force                   2600 N
              Weight                            1,20 kg

                                                                                                                        29
