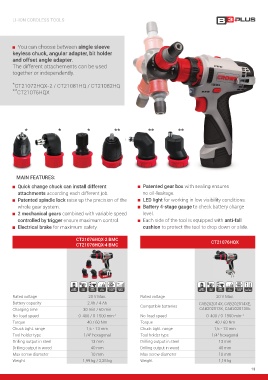

Page 13 - CrownB3plus

LI-ION CORDLESS TOOLS

You can choose between single sleeve
keyless chuck, angular adapter, bit holder
and offset angle adapter.
The different attachements can be used
together or independently.
* CT21072HQX-2 / CT21081HQ / CT21082HQ
** CT21076HQX

* * * ** ** **

MAIN FEATURES:

Quick change chuck can install different Patented gear box with sealing ensures
attachments according each different job. no oil-leakage.
Patented spindle lock raise up the precision of the LED light for working in low visibility conditions.
whole gear system. Battery 4-stage gauge to check battery charge
2 mechanical gears combined with variable speed level.
controlled by trigger ensure maximum control. Each side of the tool is equipped with anti-fall
Electrical brake for maximum safety. cushion to protect the tool to drop down or slide.

CT21076HQX-2 BMC CT21076HQX
CT21076HQX-4 BMC

Rated voltage 20 V Max. Rated voltage 20 V Max.
Battery capacity 2 Ah / 4 Ah Compatible batteries CAB202014X, CAB202014XE,
Charging time 30 min / 60 min CAB202013X, CAB202013XE
No-load speed 0-400 / 0-1500 min -1 No-load speed 0-400 / 0-1500 min -1
Torque 40 / 60 Nm Torque 40 / 60 Nm
Chuck tight. range 1,5 - 13 mm Chuck tight. range 1,5 - 13 mm
Tool holder type 1/4” hexagonal Tool holder type 1/4” hexagonal
Drilling output in steel 13 mm Drilling output in steel 13 mm
Drilling output in wood 40 mm Drilling output in wood 40 mm
Max screw diameter 10 mm Max screw diameter 10 mm
Weight 1,99 kg / 2,25 kg Weight 1,19 kg
