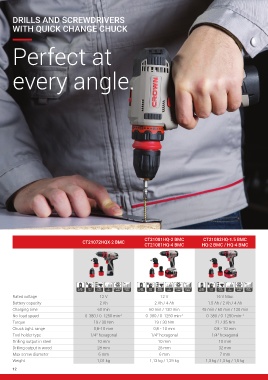

DRILLS AND SCREWDRIVERS

wITH QUICK CHANGE CHUCK

Perfect at

every angle.

CT21081HQ-2 BMC CT21082HQ-1.5 BMC
CT21072HQX-2 BMC
CT21081HQ-4 BMC HQ-2 BMC / HQ-4 BMC

Rated voltage 12 V 12 V 16 V Max.
Battery capacity 2 Ah 2 Ah / 4 Ah 1.5 Ah / 2 Ah / 4 Ah
Charging time 60 min 60 min / 120 min 45 min / 60 min / 120 min
No-load speed 0-380 / 0-1250 min -1 0-380 / 0-1250 min -1 0-380 / 0-1250 min -1
Torque 19 / 30 Nm 19 / 30 Nm 21 / 35 Nm
Chuck tight. range 0,8-10 mm 0,8 - 10 mm 0,8 - 10 mm
Tool holder type 1/4” hexagonal 1/4” hexagonal 1/4” hexagonal
Drilling output in steel 10 mm 10 mm 10 mm
Drilling output in wood 28 mm 28 mm 32 mm
Max screw diameter 6 mm 6 mm 7 mm
Weight 1,01 kg 1,13 kg / 1,29 kg 1,3 kg / 1,3 kg / 1,5 kg
