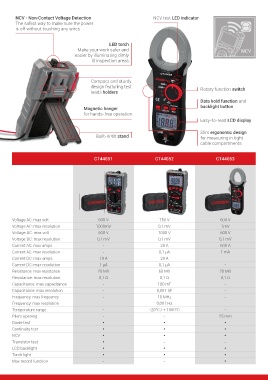

Page 2 - CrownMultimeters

NCV - Non-Contact Voltage Detection NCV test LED indicator
The safest way to make sure the power
is off without touching any wires

LED torch
Make your work safer and NCV
easier by illuminating dimly
lit inspection areas

Compact and sturdy
design featuring test Rotary function switch
leads holders

Data hold function and
Magnetic hanger backlight button
for hands-free operation
Easy-to-read LCD display

Slim ergonomic design
Built-in tilt stand for measuring in tight
cable compartments

CT44051 CT44052 CT44053

Voltage AC: max volt 600 V 750 V 600 V
Voltage AC: max resolution 1000mV 0,1 mV 1mV
Voltage DC: max volt 600 V 1000 V 600 V
Voltage DC: max resolution 0,1 mV 0,1 mV 0,1 mV
Current AC: max amps - 20 A 600 A
Current AC: max resolution - 0,1 µA 1 mA
Current DC: max amps 10 A 20 A -
Current DC: max resolution 1 µA 0,1 µA -
Resistance: max resistance 20 MΩ 60 MΩ 20 MΩ
Resistance: max resolution 0,1 Ω 0,1 Ω 0,1 Ω
Capacitance: max capacitance - 100 mF -
Capacitance: max resolution - 0,001 nF -
Frequency: max frequency - 10 MHz -
Frequency: max resolution - 0,001 Hz -
Temperature range - -20°C / + 1000°C -
Pliers opening - - 25 mm
Diode test • • •
Continuity test • • •
NCV • • •
Transistor test • - -
LCD backlight • • •
Torch light • • •
Max record function - - •
