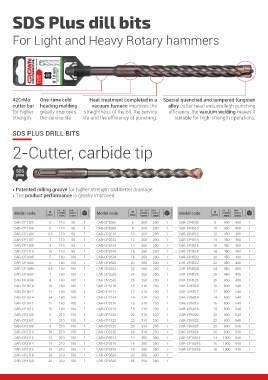

Page 2 - CrownBitsChisels

SDS Plus dill bits

For Light and Heavy Rotary hammers

42CrMo One-time cold Heat treatment completed in a Special quenched and tempered tungsten
cutter bar heading molding vacuum furnace improves the alloy cutter head ensures high punching
for higher greatly improves straightness of the bit, the service efficiency, the vacuum welding makes it
strength. the service life. life and the efficiency of punching. suitable for high-strength operations.

SDS PLUS DRILL BITS

2-Cutter, carbide tip

• Patented rolling groove for higher strength and better drainage.
• The product performance is greatly improved.

Model code Model code Model code
CAR-CP1105 5 110 50 1 CAR-CP2606 6 260 200 1 CAR-CP4508 8 450 400 1
CAR-CP1106 6 110 50 1 CAR-CP2608 8 260 200 1 CAR-CP4510 10 450 400 1
CAR-CP11H6 6,5 110 50 1 CAR-CP2610 10 260 200 1 CAR-CP4512 12 450 400 1
CAR-CP1107 7 110 50 1 CAR-CP2612 12 260 200 1 CAR-CP4514 14 450 400 1
CAR-CP1108 8 110 50 1 CAR-CP2614 14 260 200 1 CAR-CP4516 16 450 400 1
CAR-CP1110 10 110 50 1 CAR-CP2616 16 260 200 1 CAR-CP4518 18 450 400 1
CAR-CP1605 5 160 100 1 CAR-CP2618 18 260 200 1 CAR-CP4520 20 450 400 1
CAR-CP1606 6 160 100 1 CAR-CP2620 20 260 200 1 CAR-CP4522 22 450 400 1
CAR-CP16H6 6,5 160 100 1 CAR-CP2622 22 260 200 1 CAR-CP4524 24 450 400 1
CAR-CP1607 7 160 100 1 CAR-CP2625 25 260 200 1 CAR-CP4525 25 450 400 1
CAR-CP1608 8 160 100 1 CAR-CP2626 26 260 200 1 CAR-CP4526 26 450 400 1
CAR-CP1610 10 160 100 1 CAR-CP3110 10 310 250 1 CAR-CP6010 10 600 540 1
CAR-CP1612 12 160 100 1 CAR-CP3112 12 310 250 1 CAR-CP6012 12 600 540 1
CAR-CP1614 14 160 100 1 CAR-CP3114 14 310 250 1 CAR-CP6014 14 600 540 1
CAR-CP1615 15 160 100 1 CAR-CP3116 16 310 250 1 CAR-CP6016 16 600 540 1
CAR-CP1616 16 160 100 1 CAR-CP3118 18 310 250 1 CAR-CP6018 18 600 540 1
CAR-CP2106 6 210 150 1 CAR-CP3120 20 310 250 1 CAR-CP6020 20 600 540 1
CAR-CP2107 7 210 150 1 CAR-CP3122 22 310 250 1 CAR-CP6022 22 600 540 1
CAR-CP2108 8 210 150 1 CAR-CP3125 25 310 250 1 CAR-CP6025 25 600 540 1
CAR-CP2110 10 210 150 1 CAR-CP3126 26 310 250 1 CAR-CP6026 26 600 540 1
CAR-CP2112 12 210 150 1 CAR-CP3514 14 350 300 1 CAR-CP10014 14 1000 940 1
CAR-CP2114 14 210 150 1 CAR-CP3516 16 350 300 1 CAR-CP10016 16 1000 940 1
CAR-CP2116 16 210 150 1 CAR-CP3518 18 350 300 1 CAR-CP10018 18 1000 940 1
CAR-CP2118 18 210 150 1 CAR-CP3520 20 350 300 1
CAR-CP2120 20 210 150 1 CAR-CP3525 25 350 300 1
